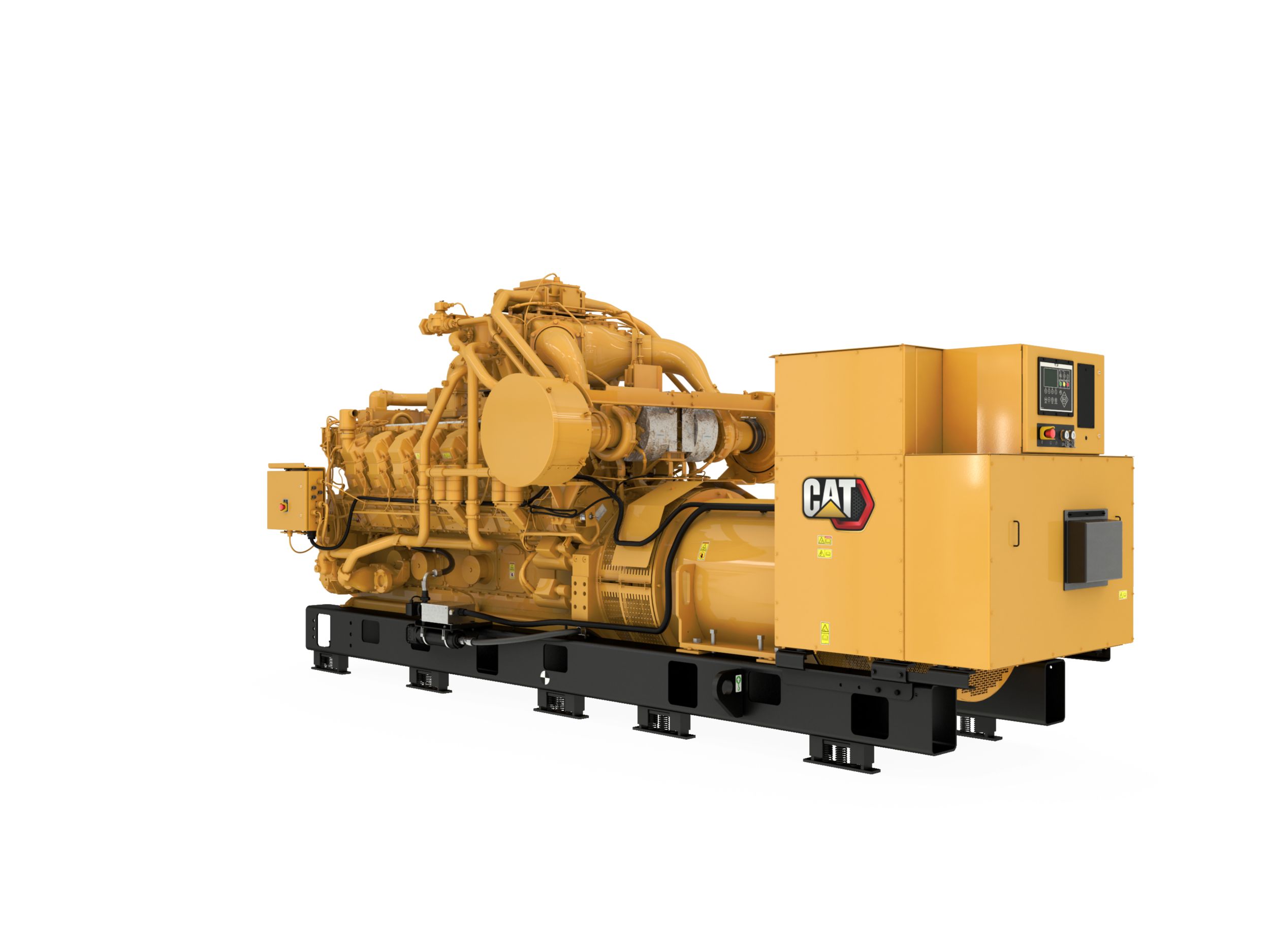

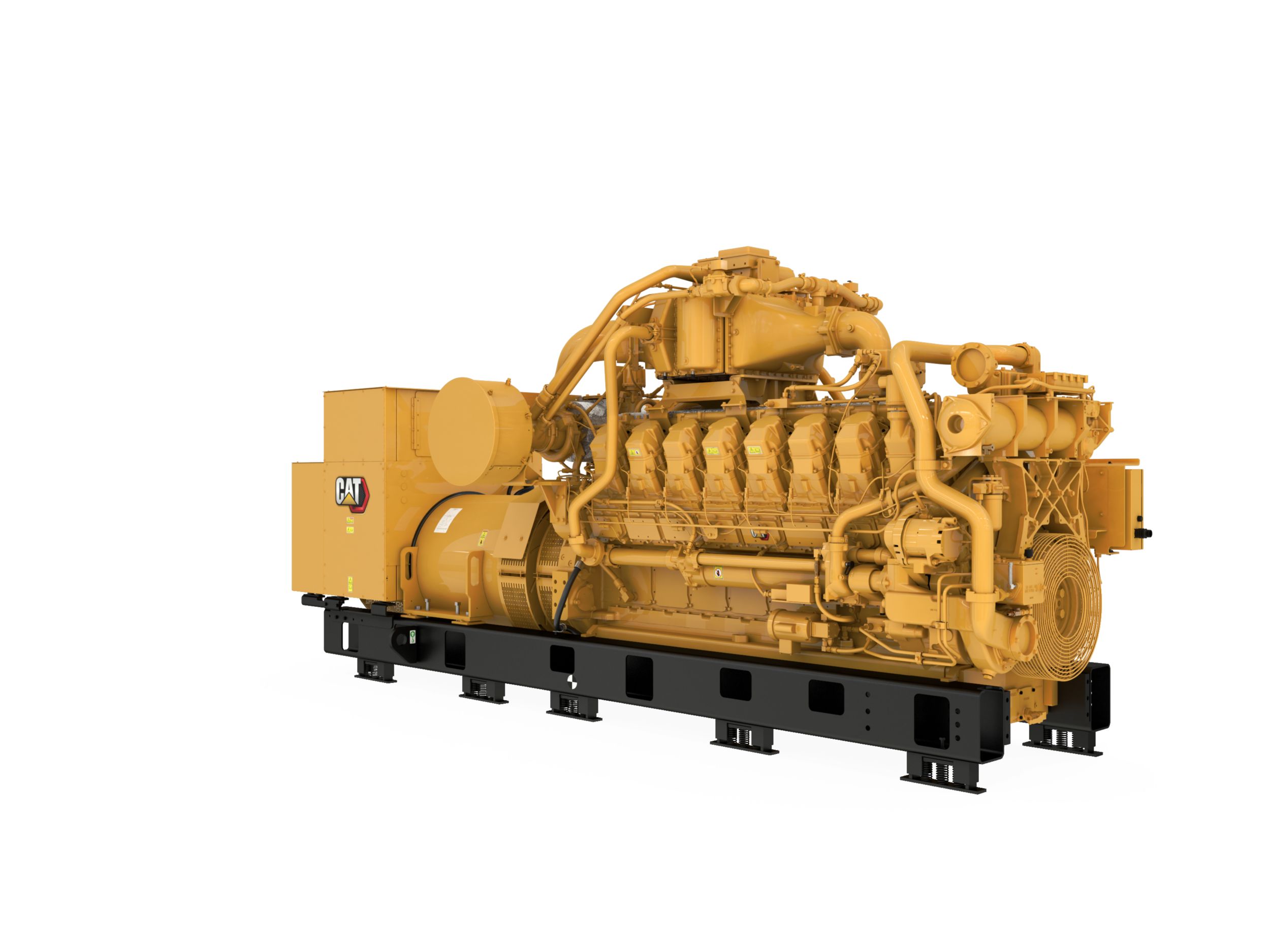

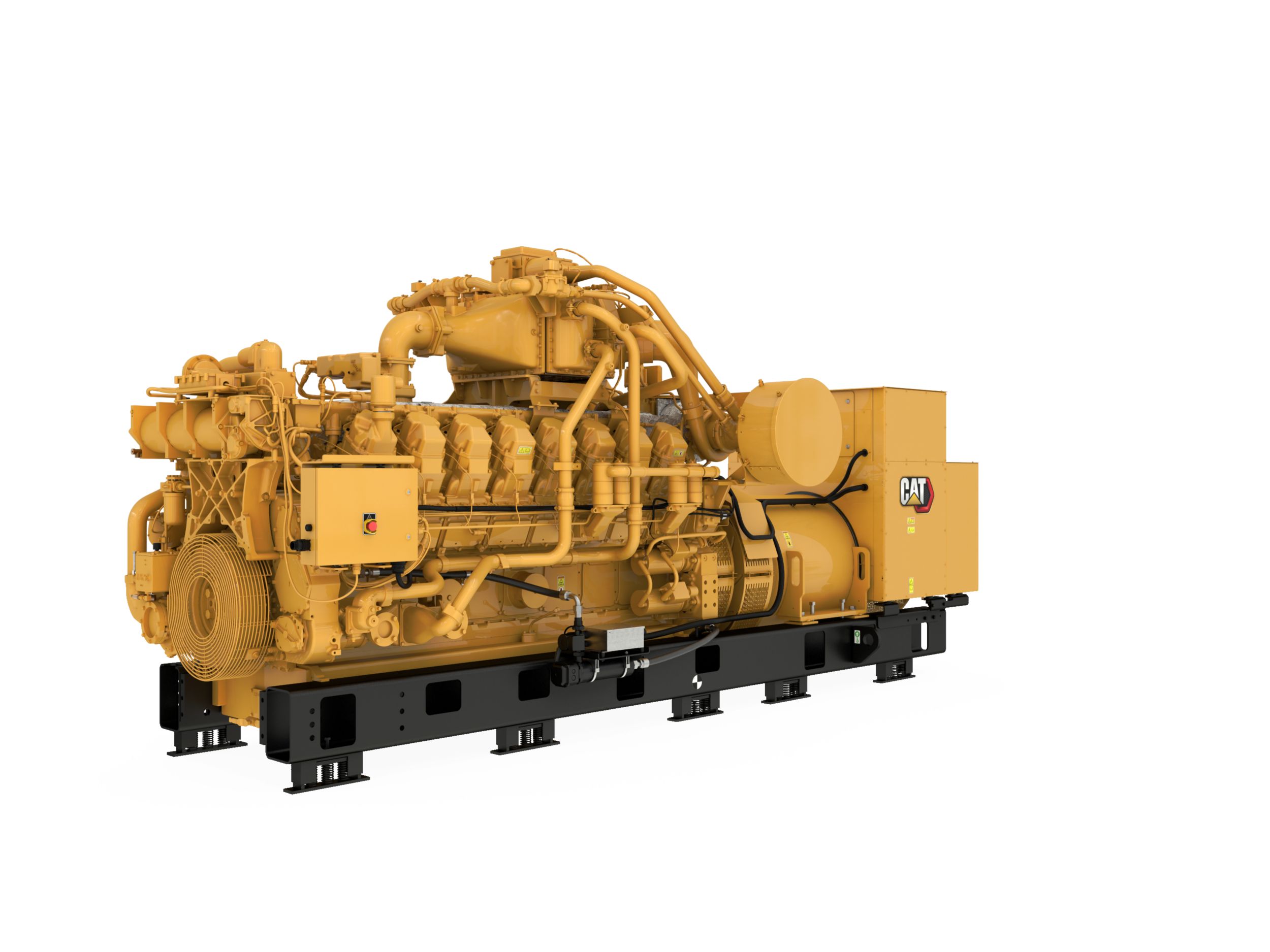

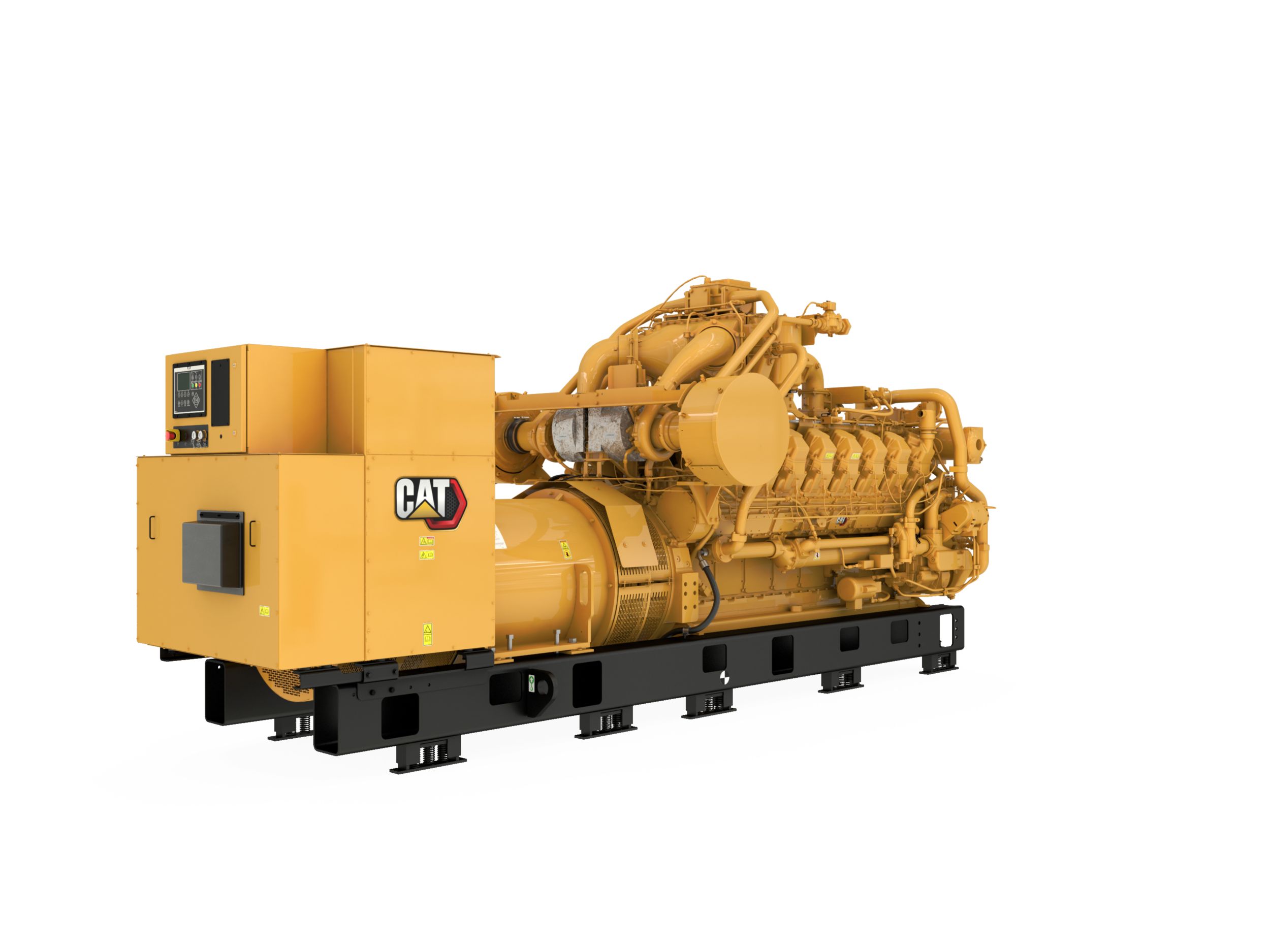

Gas Generator G3516B

Standard Equipment:

Air Inlet

• Single element canister type air cleaner with service indicator
• Modular air cleaner, single element service indicator

Control Panel

• EMCP 4.3

Cooling

• CAT flange connections
• Engine driven water pumps for jacket water and aftercooler
• Jacket water and SCAC thermostats

Circuit Breaker

• Left, Right, or Rear-Mounted
• 1600A-2000A, 3-Pole UL Rated Circuit Breakers

Exhaust

• Provides exhaust port temperatures and stack temperature to customer supplied screen via CCM
• Dry exhaust manifolds, insulated and shielded
• CAT flanged faced outlets

Fuel System

• Fuel system is sized for 31.5 to 47.2 MJ/NM3 dry pipeline natural gas with pressure of 10.2 to 34.5KPa to the engine fuel control valve
• 24V DC engerized-to-run gas shutoff valve
• Throttle plate, hydraulically actuated and controlled by GECM

Fuel system

• Electronic fuel metering valve
• Gas shutoff valve
• Electric air-fuel ratio control

Ignition System

• Individual Cylinder Detonation Sensitive Timing (DST)�
• Electronic Ignition System (controlled by GECM)

Generator

• Stator RTDs
• Form would stator
• Permanent magnet excitation
• IEC Platinum stator RTDs
• Caterpillar's digital voltage regulator (CDVR) with droop capability, 3-phase sensing, KVAR/PF modes
• Anti-condensation space heater
• Winding temperature detectors

Govrerning System

• HV Load share module

Optional Equipment:

Air Inlet

• Air inlet adapters- rectangular or round

Circuit Breaker

• 3 Pole UL 489 Listed
• 3 Pole IEC 947-2 Rated
• 1200A, 1600A, 2000A, 2500A, 3200A circuit breaker with shunt trip and auxiliary contacts

Control Panel

• Local alarm module
• PL1000E/PL1000T communications module
• Synchronizing module
• Engine failure relay
• Remote annuciator
• Customer Interface Module

Cooling

• Flexible connection for jacket water inlet and outlet

Exhaust

• 203mm/305mm Elbow
• Flexible Fitting (203mm)
• Flange
• 15 dBA, 356mm (14 in) muffler attenuation
• Exhaust Expander

Fuel System

• Fuel filter/ Gas filter
• 206-412 kPa (30-60psi) gas knockdown regulator

Generator

• Generator air filter
• Low voltage extension box
• 2400V delta conversion
• Medium and high voltage generators and attachment
• Manual voltage control
• Bearing temperature detectors
• 3-phase, 380/480/600/4160V @ 1800rpm generator (60 Hz)
• European bus bar
• Cable access box

General

• Digital diagnostic tool
• US AID Emblem
• Tool set
• Special paint order

Starting/Charging

• Charging alternator
• 10A/20A Battery charger
• Jacket water coolant heater
• Electric starting motor LH
• 24V Battery Set
