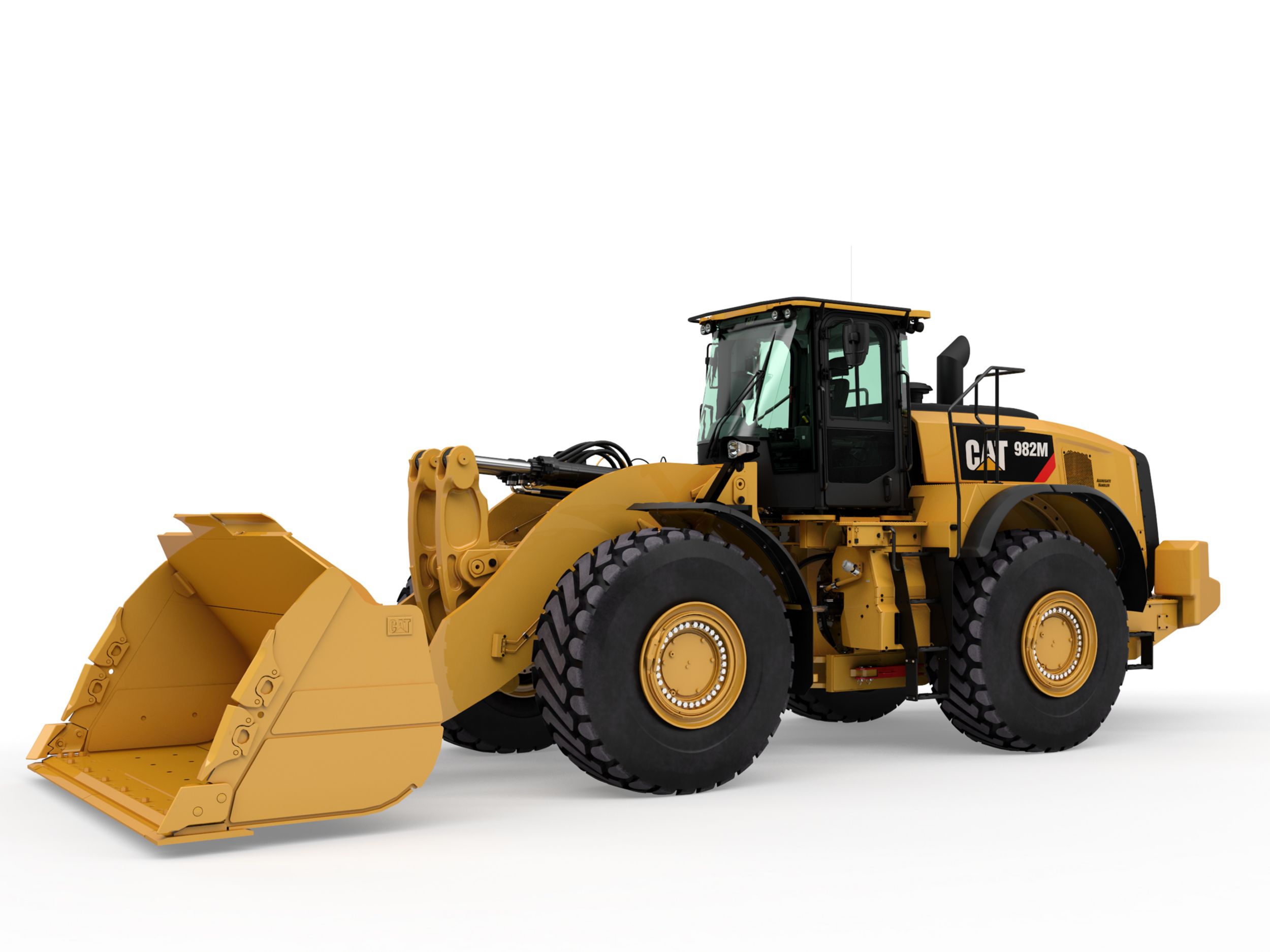

| Displacement | 763in³ |
|---|---|
| Emissions | Tier 4/Stage IV |
| Engine Model | Cat C13 |
| Maximum Net Power - 1,700 rpm - ISO 9249 | 398HP |
| Maximum Net Power - 1,700 rpm - ISO 9249 - Metric | 404HP |
| Maximum Net Power - 1,700 rpm - SAE J1349 | 398HP |
| Maximum Net Power - 1,700 rpm - SAE J1349 - Metric | 404HP |
| Maximum Net Torque - 1,100 rpm | 1518ft·lbf |
| Maximum Power - 1,700 rpm - ISO 14396 | 430HP |
| Maximum Power - 1,700 rpm - ISO 14396 - Metric | 436HP |
| Maximum Power - 1,700 rpm - SAE J1995 | 436HP |
| Maximum Power - 1,700 rpm - SAE J1995 - Metric | 442HP |
| Net Power - ISO 9249 | 398HP |
| Note | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.6 kg of refrigerant which has a CO2 equivalent of 2.288 metric tonnes. |
| Peak Gross Torque - 1,200 rpm - ISO 14396 | 1609ft·lbf |
| Peak Gross Torque - 1,200 rpm - SAE J1995 | 1627ft·lbf |
| Note | Weight based on a machine configuration with Bridgestone 875/65R29 VLTS L4 radial tires, full fluids, operator, standard counterweight, cold start, roading fenders, Product Link™, open differential axles, secondary steering, sound suppression, and a 6.1 m |
|---|---|
| Operating Weight | 78402lb |
| Bucket Capacities | 4.6-12.0 m³ (6.0-15.75 yd³) |
|---|
| Cooling System | 14gal (US) |
|---|---|
| Crankcase | 9.8gal (US) |
| DEF Tank | 5.5gal (US) |
| Differential - Final Drives - Front | 24.3gal (US) |
| Differential - Final Drives - Rear | 24.3gal (US) |
| Fuel Tank | 112.5gal (US) |
| Hydraulic Tank | 48gal (US) |
| Transmission | 20.3gal (US) |
| Note (1) | *Distance of 15 m (49.2 ft), moving forward in second gear ratio. |
|---|---|
| Note (2) | **For machines in European Union countries and in countries that adopt the "EU Directives." |
| Note (3) | ***European Union Directive "2000/14/EC" as amended by "2005/88/EC." |
| With Cooling Fan Speed at 70% of Maximum Value - Exterior Sound Power Level (ISO 6395:2008)** | 109 LWA*** |
| With Cooling Fan Speed at 70% of Maximum Value - Operator Sound Pressure Level (ISO 6396:2008)** | 72dB(A) |
| With Cooling Fan Speed at Maximum Value - Exterior Sound Power Level (ISO 6395:2008) | 112dB(A) |
| With Cooling Fan Speed at Maximum Value - Exterior Sound Pressure Level (SAE J88:2013) | 78 dB(A)* |
| With Cooling Fan Speed at Maximum Value - Operator Sound Pressure Level (ISO 6396:2008) | 72dB(A) |
| Centerline of Rear Axle to Edge of Counterweight | 8.92ft |
|---|---|
| Centerline of Rear Axle to Hitch | 6.25ft |
| Ground Clearance | 1.33ft |
| Height - Top of Exhaust Pipe | 12.25ft |
| Height - Top of Hood | 10.17ft |
| Height - Top of ROPS | 12.5ft |
| Hinge Pin Height at Carry | 2.67ft |
| Hinge Pin Height at Maximum Lift | 15.5ft |
| Lift Arm Clearance at Maximum Lift | 12.67ft |
| Maximum Width over Tires | 11.5ft |
| Note | All dimensions are approximate and based on Bridgestone 875/65R29 VLTS L4 radial tires. |
| Overall Length - Without Bucket | 28.17ft |
| Rack Back - Carry Height | 48 degrees |
| Rack Back - Maximum Lift | 57 degrees |
| Rack Back at Ground | 42 degrees |
| Tread Width | 8.33ft |
| Wheel Base | 12.5ft |
| Forward - 1 | 3.9mile/h |
|---|---|
| Forward - 2 | 7.4mile/h |
| Forward - 3 | 13.1mile/h |
| Forward - 4 | 23.3mile/h |
| Note | Maximum travel speed in standard vehicle with empty bucket and standard L4 tires with 914 mm (36 in) roll radius. |
| Reverse - 1 | 4.3mile/h |
| Reverse - 2 | 8.5mile/h |
| Reverse - 3 | 15mile/h |
| Reverse - 4 | 24.5mile/h |
| Breakout Force | 58450lbf |
|---|---|
| Note (1) | For a machine configuration as defined under "Weight." |
| Note (2) | Full compliance to ISO 143971:2007 Sections 1 thru 6. |
| Static Tipping Load - Full 40° Turn - No Tire Deflection | 49368lb |
| Static Tipping Load - Full 40° Turn - With Tire Deflection | 46473lb |
| Bucket Range | 4.6-12.0 m³ (6.0-15.75 yd³) |
|---|
| Hydraulic Cycle Time - Total | 10.1s |
|---|---|
| Implement System - Maximum Operating Pressure | 4975psi |
| Implement System - Maximum Pump Output at 2,250 rpm | 119gal/min |
| Emissions | Tier 4/Stage IV |
|---|
