New CP5 Vibratory Soil Compactor in North Carolina

  • Home
  • New Equipment
  • New Compactors
  • CP5 Vibratory Soil Compactor
    • Back to

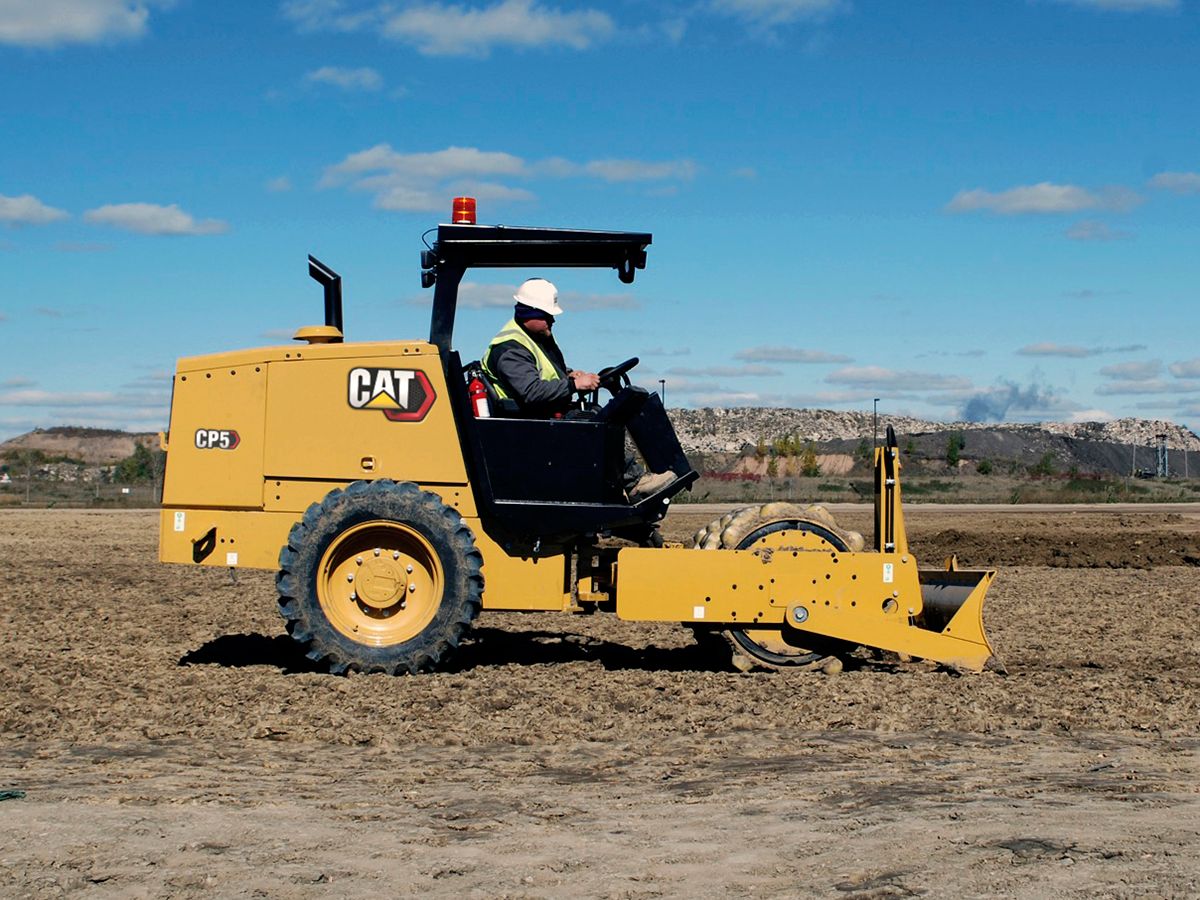

    The Cat® CP5 Vibratory Soil Compactors are ideally suited for cohesive and semi-cohesive soil compaction applications. A durable propel system and narrow machine width make it ideal for small compaction jobs or working in tight areas such as trenches or job sites with limited space.

    Pricing: Contact for Pricing

    Request a New Equipment Quote

    Fill out this form below and we will get back to you within 1 to 2 business days! Alternatively, give us a call at 833-286-3561


      This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

      Request a quote Request Demo

      The Cat® CP5 Vibratory Soil Compactors are ideally suited for cohesive and semi-cohesive soil compaction applications. A durable propel system and narrow machine width make it ideal for small compaction jobs or working in tight areas such as trenches or job sites with limited space.

      Pricing: Contact for Pricing

      Request a quote

      Request a New Equipment Quote

      Fill out this form below and we will get back to you within 1 to 2 business days! Alternatively, give us a call at 833-286-3561


        This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

        Request Demo
        Note (1) Operating weights are approximate and consider full fluids and 80 kg (176 lb) operator.
        Operating Weight - With ROPS/FOPS Canopy 10307lb
        Weight - Drum with ROPS/FOPS Canopy 4872lb
        Compaction Width 50in
        Drum Diameter - Over Pads 40in
        Maximum Height 8.3ft
        Optional Blade Height 22in
        Overall Length 13.6ft
        Overall Length - With Blade Option 14.9ft
        Overall Width 4.6ft
        Overall Width - With Blade Option 5.2ft
        Wheel Base 7.3ft
        Bore 3.9in
        Emissions U.S. EPA Tier 4 Final
        Engine Model Cat® C3.4B
        Engine Power - ISO 14396 74.4hp
        Gross Power 74.6hp
        Net Power - ISO 9249 68.3hp
        Net Power - SAE J1349:2011 67.5hp
        Note (1) Net power advertised is the power available at the engine flywheel when equipped with a fan at maximum speed, air cleaner, clean emissions module, and alternator.
        Stroke 4.3in
        Curb Clearance 13.5in
        Ground Clearance 13.7in
        Travel Speed - Maximum 5.5mile/h
        Turning Radius - Inside Drum Edge 8.61ft
        Axle and Final Drives 1.9gal (US)
        Cooling System 4.8gal (US)
        Eccentric Weight Housings (combined) 7gal (US)
        Engine Oil - With Filter 2.4gal (US)
        Fuel Tank Capacity 29.9gal (US)
        Hydraulic Tank 10.6gal (US)
        Recyclability 98%
        Centrifugal Force - Maximum 17535lb
        Nominal Amplitude - High 0.05in

        Standard Equipment:

        • Standard and optional equipment may vary. Consult your Cat dealer for details.
        • ROPS/FOPS Canopoy with Handrails, Floor Mat, and Vinyl Seat
        • Adjustable Seat with Integrated Console
        • LCD Display with Lockable Vandalism Guard
        • Rear Vision Camera System with Color Touchscreen Display
        • 76 mm (3 in) Seat Belt
        • 12-volt Power Outlet
        • Horn, Backup Alarm
        • Padfoot Drum - Oval Pads
        • Single Amplitude, Single Frequency
        • Dual Adjustable Steel Scrapers
        • Cat® C3.4B Engine
        • Air Cleaner, Dual Element
        • Single-Speed Hydrostatic Transmission
        • Dual Propel Pumps; One for Drum Drive, One for Rear Axle
        • Fuel Filter, Water Separator, Priming Pump, Water Indicator
        • Radiator / Hydraulic Oil Cooler
        • Dual Braking System
        • Two-Speed Throttle Switch
        • Limited Slip Differential
        • 12 volt Electrical System
        • 120 ampere Alternator
        • 600 Cold-cranking Amps Battery Capacity
        • Lockable Engine Enclosure, Hydraulic and Fuel Tanks
        • Sight Gauges for Hydraulic Oil Level and Radiator Coolant Level
        • S·O·S℠ Sampling Values: Engine Oil, Hydraulic Oil, and Coolant
        • Halogen Working Lights (4)

        Optional Equipment:

        • Standard and optional equipment may vary. Consult your Cat dealer for details.
        • Leveling Blade
        • Amber Rotating Beacon
