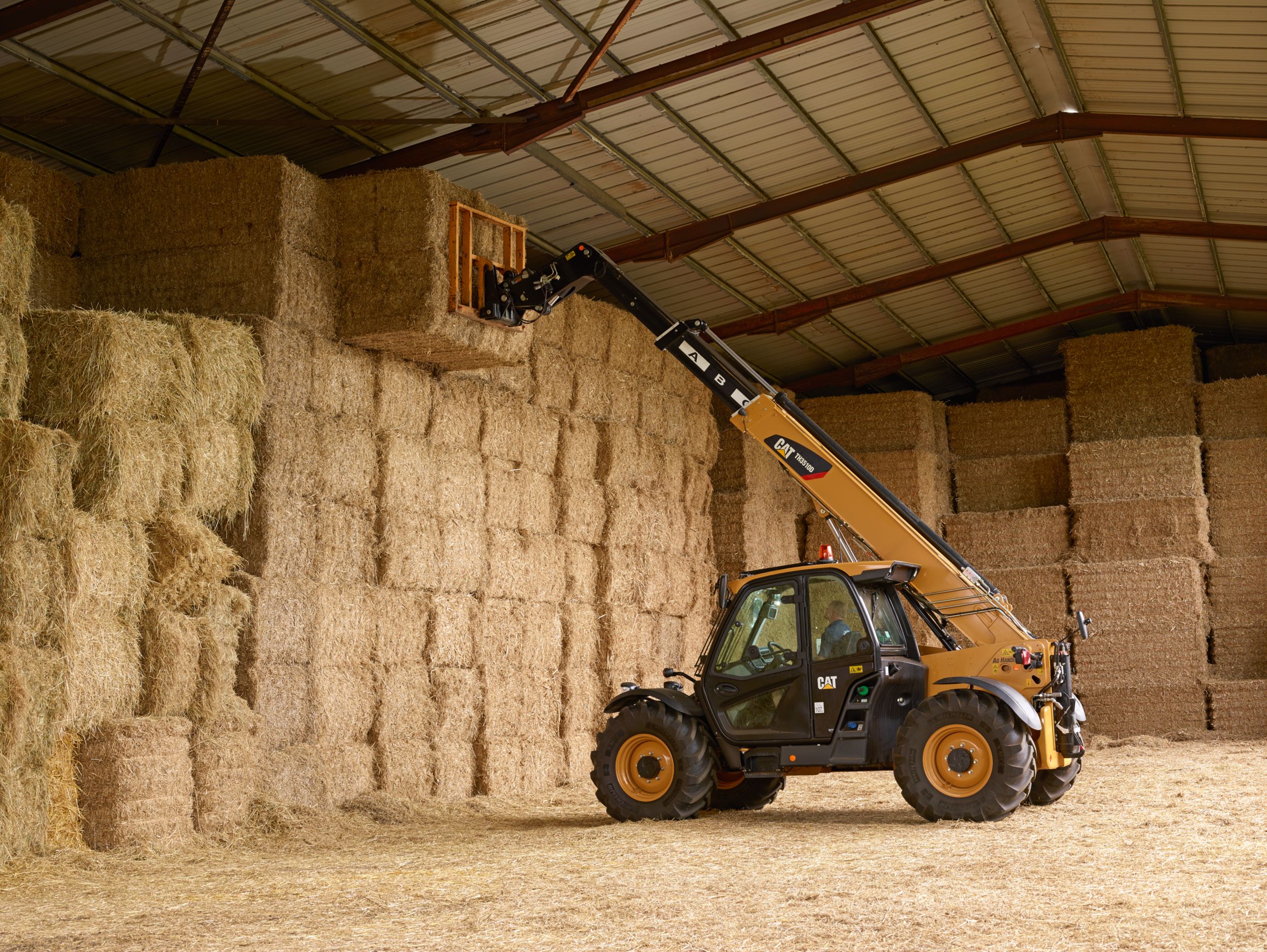

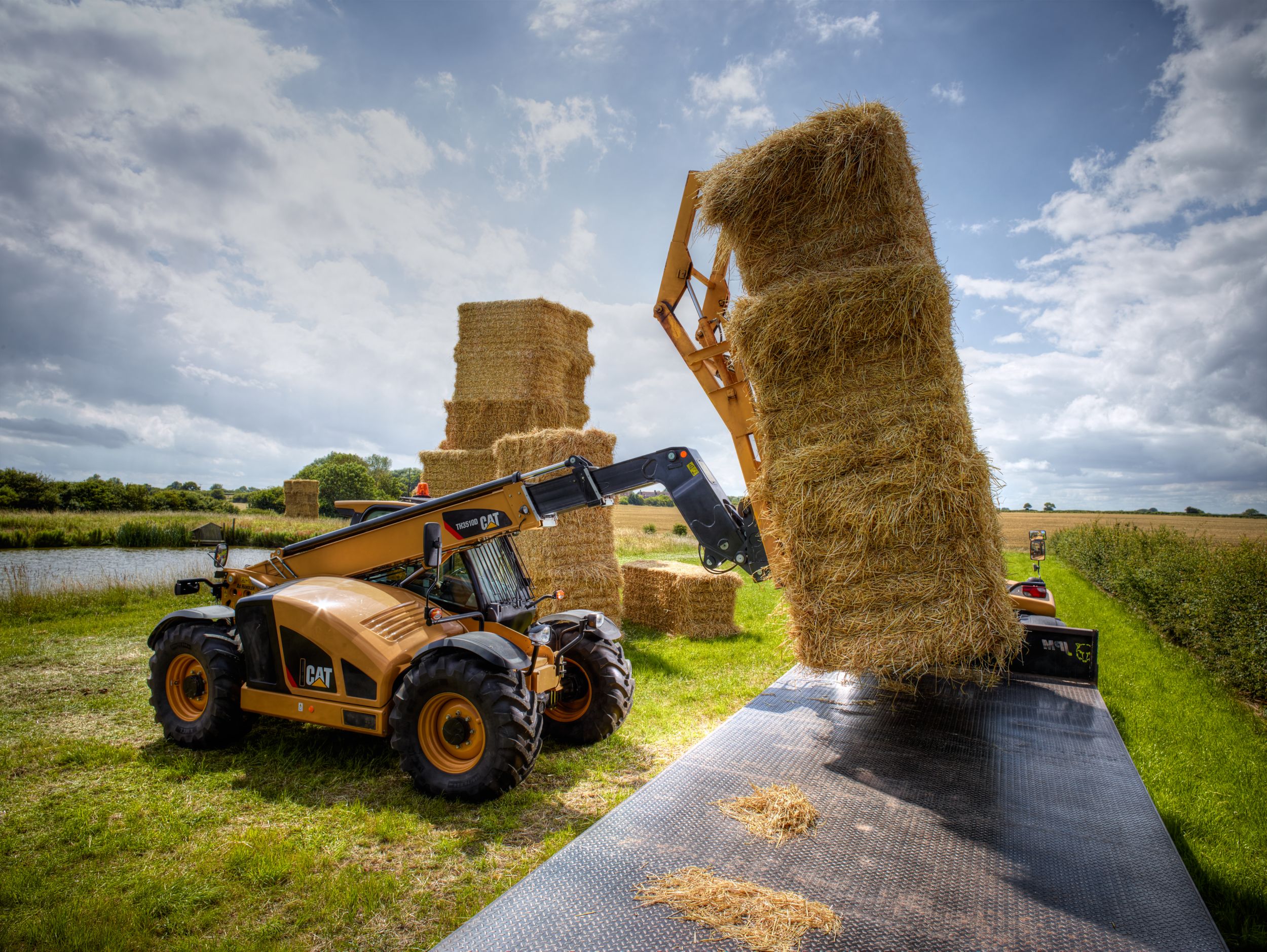

| Capacity at Maximum Forward Reach | 1275lb |
|---|---|
| Capacity at Maximum Lift Height | 1400lb |
| Maximum Forward Reach | 21.6ft |
| Maximum Lift Height | 32.1ft |
| Outside Turning Radius - Over Forks | 15.9ft |
| Outside Turning Radius - Over Tires | 12.6ft |
| Rated Load Capacity | 7700lb |
| Engine Model | Cat C3.4B |
|---|
| Option (1) | Michelin 15.5 R25 XHA |
|---|---|
| Option (2) | Michelin 460/70 R24 XMCL |
| Option (3) | Michelin 500/70 R24 XMCL |
| Option (4) | Michelin 440/80 24 Power CL |
| Option (5) | Michelin 400/80 24 Power CL |
| Option (6) | Michelin 460/70 R24 Bibload |
| Option (7) | Firestone Duraforce |
| Option (8) | 13 × 24 Solid Tires |
| Standard | Mitas 15.5/80-24 16 ply |
| Diesel Exhaust Fluid | 5gal (US) |
|---|---|
| Fuel Tank | 40gal (US) |
| Hydraulic Tank | 31.7gal (US) |
| Auxiliary Hydraulic Flow - Boom Head - Continuous | 25gal/min |
|---|---|
| Auxiliary Hydraulic Flow - Boom Head - Intermittent | 25gal/min |
| Auxiliary Hydraulic Flow - Machine Rear | 21gal/min |
| Auxiliary Hydraulic Pressure | 3553psi |
| Maximum Pump Capacity | 36.9gal/min |
| Pump Type | Variable Flow, Axial Piston |
| System Pressure | 3770psi |
| System Type | Load Sensing, Closed Center |
| Boom Down | 6.5s |
|---|---|
| Boom Up | 8s |
| Combined - Down and In | 12.8s |
| Combined - Up and Out | 24s |
| Crowd Backward | 3.5s |
| Crowd Forward - Dump | 3s |
| Tele In | 10.5s |
| Tele Out | 11s |
| Parking Brake | Mechanical lever on front axle |
|---|---|
| Service Brakes | Boosted on front and rear brakes |
| Front Axle | High bias, planetary reduction hubs with limited slip differential |
|---|---|
| Rear Axle | Open differential with planetary reduction hubs |
| Bore | 4.1in |
|---|---|
| Displacement | 269in³ |
| Emissions | *Meets Tier 4 Final emission standards. |
| Gross Power | 106 kW (142 hp/bhp) |
| Maximum Torque | 413ft·lbf |
| Model* | Cat C4.4 ACERT |
| Stroke | 5in |
| Boom Breakout Force | 9217lbf |
|---|---|
| Bucket Breakout Force | 13938lbf |
| Drawbar Pull - 106 kW/142.1 hp Engine | 21806lbf |
| Drawbar Pull - 83 kW/111.3 hp Engine | 20682lbf |
| Drawbar Pull - 93 kW/124.1 hp Engine | 19783lbf |
| Noise Levels - External | 106dB(A) |
| Noise Levels - In Cab | 74dB(A) |
| Quick Coupler Rotation | 152° |
| Towable Mass - Hydraulically Braked | 26455lb |
| Cab Width | 3ft |
|---|---|
| Departure Angle | 60° |
| Ground Clearance | 1.4ft |
| Machine Length | 17.3ft |
| Maximum Fork Crowd Angle | 24° |
| Maximum Fork Dump Angle | 128° |
| Overall Height - Standard Tires* | 8.1ft |
| Overall Length to Front of Carriage | 17.4ft |
| Overall Width - Standard Tires | 7.8ft |
| Overhang | 3.3ft |
| Track | 6.5ft |
| Wheel Base | 10.3ft |
| Capacity at Maximum Height | 1400lb |
|---|---|
| Capacity at Maximum Reach | 1275lb |
| Rated Load Capacity | 7700lb |
| Gross Power - 2,200 rpm - Option 1 | 124HP |
|---|---|
| Gross Power - 2,200 rpm - Option 2 | 142HP |
| Gross Power - 2,200 rpm - Standard | 111HP |
| Forward - 1 | 3.5mile/h |
|---|---|
| Forward - 2 | 5.3mile/h |
| Forward - 3 | 7mile/h |
| Forward - 4 | 10.3mile/h |
| Forward - 5 | 15.7mile/h |
| Forward - 6 | 24.9mile/h |
| Note | *Maximum speed subject to machine configuration. |
| Reverse - 1 | 3.5mile/h |
| Reverse - 2 | 7mile/h |
| Reverse - 3 | 15.7mile/h |
| Type | Cat PG124 6 speed power shift |
| Bore | 3.9in |
|---|---|
| Displacement | 207in³ |
| Emissions | *Meets Tier 4 Final emission standards. |
| Gross Power | 83 kW (111 hp/bhp) |
| Maximum Torque | 339ft·lbf |
| Model* | Cat C3.4B |
| Stroke | 4.3in |
| Maximum Forward Reach | 21.6ft |
|---|---|
| Maximum Lift Height | 32.1ft |
| Bore | 4.1in |
|---|---|
| Displacement | 269in³ |
| Emissions | *Meets Tier 4 Final emission standards. |
| Gross Power | 93 kW (124 hp/bhp) |
| Maximum Torque | 391ft·lbf |
| Model* | Cat C4.4 ACERT |
| Stroke | 5in |
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.2 kg of refrigerant which has a CO2 equivalent 1.575 metric tonne. |
|---|
| Alternator Output | 12V/150A |
|---|---|
| Battery | 1 × 12V 1,000 CCA Battery |
| Note | *Represents machine configuration of 106 kW (142 hp/bhp) engine on standard 15.5/80-24 16 ply tires. |
|---|---|
| Operating Weight - With Carriage and Forks* | 20170lb |
