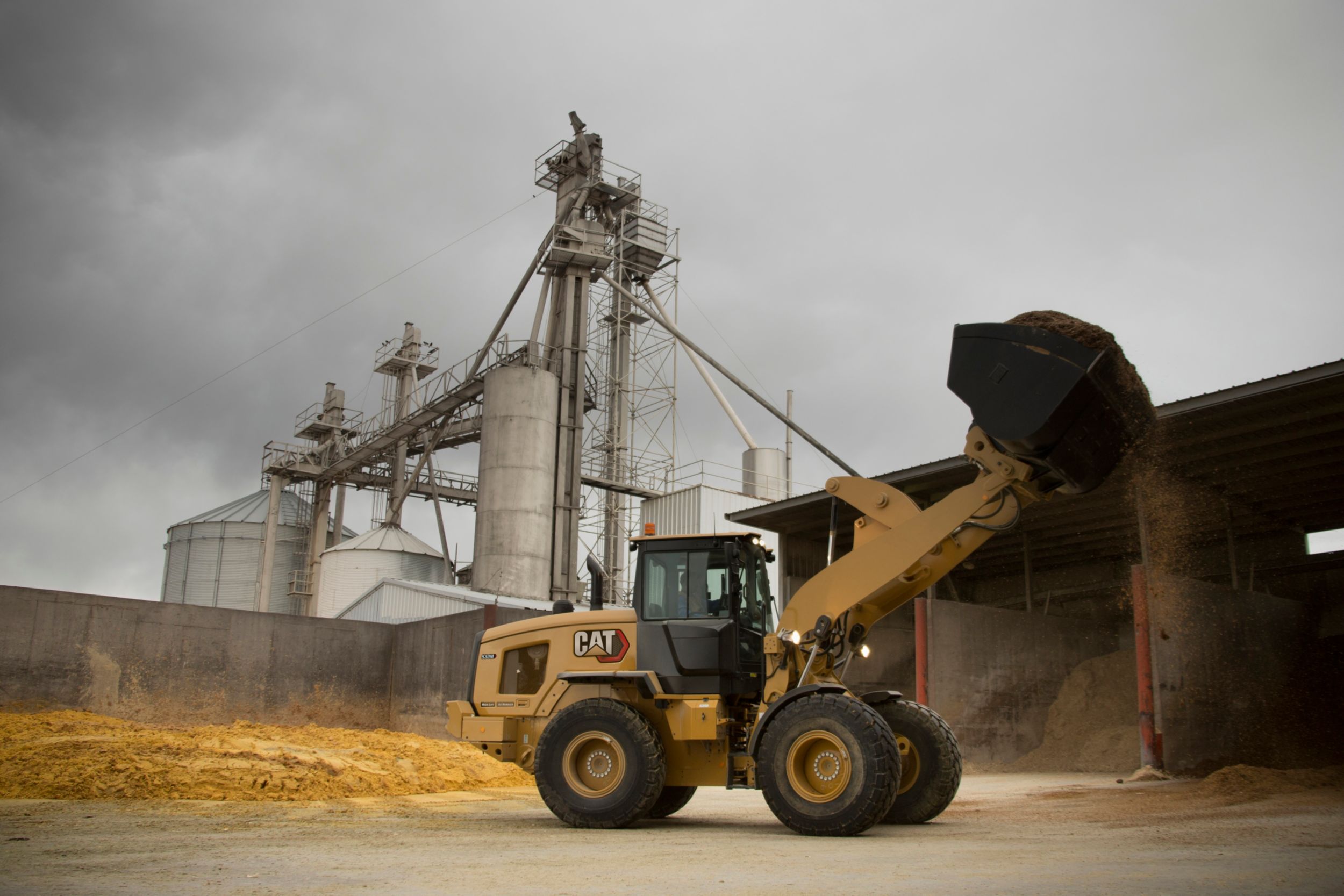

| Bore (Standard Power Mode: Range 1-3**) | 4.1in |
|---|---|
| Bore (Standard Power Mode: Range 1-4) | 4.1in |
| Displacement (Performance Power Mode: Speed Range 1-4) | 428in³ |
| Displacement (Standard Power Mode: Range 1-3**) | 428in³ |
| Emissions | Engine meets U.S. EPA Tier 4 Final emission standards. |
| Engine Model | Cat® C7.1 |
| Maximum Gross Power | 168hp |
| Maximum Gross Power - ISO 14396 (DIN) (Performance Power Mode: Range 1-4) | 170hp |
| Maximum Gross Power - ISO 14396 (Performance Power Mode: Range 1-4) | 168hp |
| Maximum Gross Power - ISO 14396 (Standard Power Mode: Range 1-3**) | 160hp |
| Maximum Gross Power - ISO 14396 (metric) (Standard Power Mode: Range 1-3**) | 162hp |
| Maximum Gross Power - Maximum Engine Speed (Performance Power Mode: Range 1-4) | 1800r/min |
| Maximum Gross Power - Maximum Engine Speed (Standard Power Mode: Range 1-3**) | 1600r/min |
| Maximum Gross Torque - ISO 14396 (Performance Power Mode: Range 1-4) | 601ft·lbf |
| Maximum Gross Torque - ISO 14396 (Standard Power Mode: Range 1-3**) | 795N·m |
| Maximum Net Torque - ISO 9249 (Performance Power Mode: Range 1-4) | 587ft·lbf |
| Maximum Net Torque - ISO 9249 (Standard Power Mode: Range 1-3**) | 776N·m |
| Maximum Net Torque - SAE J1349 (Performance [HP+] Power Mode: Range 1-4) | 797N·m |
| Maximum Net Torque - SAE J1349 (Standard Power Mode: Range 1-3**) | 573ft·lbf |
| Maximum Rated Gross Power - ISO 14396 | 168hp |
| Maximum Rated Gross Power - ISO 14396 (metric) | 170mhp |
| Net Power - ISO 9249 (metric) at Minimum Fan Speed (Performance Power Mode: Range 1-4) | 166hp |
| Net Power - ISO 9249 (metric) at Minimum Fan Speed (Standard Power Mode: Range 1-3**) | 158hp |
| Net Power - ISO 9249 at Minimum Fan Speed (Performance Power Mode: Range 1-4) | 164hp |
| Net Power - ISO 9249 at Minimum Fan Speed (Standard Power Mode: Range 1-3**) | 156hp |
| Net Power - SAE J1349 at Minimum Fan Speed (Performance Power Mode: Range 1-4) | 163hp |
| Net Power - SAE J1349 at Minimum Fan Speed (Standard Power Mode: Range 1-3**) | 156hp |
| Note (1) | *The Cat C7.1 engine meets U.S. EPA Tier 4 Final/EU Stage V emission standards. |
| Note (2) | **Range 4 power and torque is equal to Performance Mode with Caterpillar Power by Range technology. |
| Note (3) | Net power ratings are tested at the reference conditions for the specified standard and denote power available at the flywheel when the engine is equipped with alternator, air cleaner, emission components and fan at specified speed. |
| Note (4) | No derating required up to 3000 m (10,000 ft) altitude. Auto derate protects hydraulic and transmission systems. |
| Stroke (Standard Power Mode: Range 1-3**) | 5.3in |
| Stroke - Performance Power Mode: Range 1-4 | 5.3in |
| Operating Weight | 31382lb |
|---|
| Bucket Capacities | 2.1-5.0 m³ (2.7-6.5 yd³) |
|---|---|
| Bucket Capacities - Light Material | 3.1-5.0 m³ (4.0-6.5 yd³) |
| Declared Sound Levels - Exterior Sound Power Level (ISO 6395:2008)* | 101dB(A) |
|---|---|
| Declared Sound Levels - Operator Sound Pressure Level (ISO 6396:2008)* | 68dB(A) |
| FOPS | ISO 3449:2005 Level II |
| Note (1) | *The measurements were conducted at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds. The cab was properly installed and maintained. The measurements were conducted with the cab doors and the cab |
| ROPS | ISO 3471:2008 |
| Cycle Times - 1,600 rpm - Standard: Dump (at Maximum Lift Height) | 1.7s |
|---|---|
| Cycle Times - 1,600 rpm - Standard: Float Down (Maximum Lift to Ground Level) | 2.7s |
| Cycle Times - 1,600 rpm - Standard: Raise (Ground Level to Maximum Lift) | 5.7s |
| Cycle Times - 1,600 rpm - Standard: Total Cycle Time | 10.1s |
| Cycle Times - 1,800 rpm - Performance (HP+): Dump (at Maximum Lift Height) | 1.5s |
| Cycle Times - 1,800 rpm - Performance (HP+): Float Down (Maximum Lift to Ground Level) | 2.7s |
| Cycle Times - 1,800 rpm - Performance (HP+): Raise (Ground Level to Maximum Lift) | 5.1s |
| Cycle Times - 1,800 rpm - Performance (HP+): Total Cycle Time | 9.3s |
| Lift Cylinder: Standard Lift Linkage - Bore Diameter | 4.3in |
| Lift Cylinder: Standard Lift Linkage - Rod Diameter | 2.4in |
| Lift Cylinder: Standard Lift Linkage - Stroke | 28.7in |
| Maximum Flow - Implement Pump | 50gal/min |
| Maximum Flow - Implement Pump - 3rd Function Maximum Flow* | 50gal/min |
| Maximum Flow - Implement Pump - 4th Function Maximum Flow* | 42gal/min |
| Maximum Working Pressure - Implement Pump | 4061psi |
| Note | *3rd and 4th function flow is fully adjustable from 20% to 100% of maximum flow through the secondary display. |
| Note (1) | Implement system uses a dedicated load sensing variable displacement pump with dual double acting lift cylinders and a single double acting tilt cylinder. |
| Note (2) | Flow values listed are for a machine running in Performance Power Mode (1,800 rpm). |
| Relief Pressure - Tilt Cylinder | 4351psi |
| Relief Pressure - Tilt Cylinder - 3rd and 4th Function Maximum Working Pressure | 4061psi |
| Relief Pressure - Tilt Cylinder - 3rd and 4th Function Relief Pressure | 4351psi |
| Tilt Cylinder: Standard Lift Linkage - Bore Diameter | 5.1in |
| Tilt Cylinder: Standard Lift Linkage - Rod Diameter | 2.8in |
| Tilt Cylinder: Standard Lift Linkage - Stroke | 21.9in |
| Brakes - Parking | Spring applied hydraulically released |
|---|---|
| Brakes - Service | Inboard wet disc |
| Front Axle | Fixed |
| Front Axle - Traction Aid* | Locking differential standard |
| Note | *Differential front locking axle can be engaged on the go at full torque to 10 km/h (6.2 mph). |
| Note (2) | Power train is governed by the Caterpillar exclusive Intelligent Power Management system to deliver peak performance and efficiency. |
| Rear Axle | Oscillating |
| Rear Axle - Oscillation Angle by Tire Size - 20.5 R25 | ± 10.5 degrees |
| Rear Axle - Oscillation Angle by Tire Size - 750/65, 620/65 | ± 7 degrees |
| Rear Axle - Traction Aid | Limited slip differential optional |
| Forward - Range 1* | 1-13 km/h (0.6-8 mph) |
|---|---|
| Forward - Range 2 | 8mile/h |
| Forward - Range 3 | 17mile/h |
| Forward - Range 4 | 25mile/h |
| Note | Creeper control allows maximum speed range adjustability in the forward direction from 1 km/h (0.6 mph) to 13 km/h (8 mph) in Range 1 through the secondary display when equipped. Factory default is 7 km/h (4.4 mph). Maximum reverse speed will be maintaine |
| Reverse - Range 1* | 8mile/h |
| Reverse - Range 2 | 8mile/h |
| Reverse - Range 3 | 17mile/h |
| Reverse - Range 4 | 25mile/h |
| Note (1) | Other tire choices are available. Contact your Cat dealer for details. |
|---|---|
| Note (2) | Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model. |
| Other Choices Include | 20.5 R25, Radial (L-2); 620/75 R26 MegaX, 750/65 R26 MegaX |
| Standard Size | 20.5 R25, radial (L-3) |
| Articulation Angle | 40° |
|---|---|
| Carry Height - Bucket Pin | 1.3ft |
| Clearance - Bucket at 45°* | 9.1ft |
| Clearance - Level Bucket** | 11.75ft |
| Clearance - Load over Height** | 10.9ft |
| Departure Angle | 33° |
| Dig Depth** | 3.9in |
| Dump Angle at Full Lift | 48° |
| Height - Bucket Pin** | 12.8ft |
| Height - Ground Clearance** | 1.3ft |
| Height - Ground to Axle Center** | 2.25ft |
| Height - Ground to Beacon** | 12.2ft |
| Height - Ground to Cab** | 10.9ft |
| Height - Overall** | 17.1ft |
| Length - Hitch to Front Axle | 4.9ft |
| Length - Overall* | 24.9ft |
| Length - Rear Axle to Bumper | 6.5ft |
| Length - Wheel Base | 9.8ft |
| Note (1) | *Vary with bucket. |
| Note (2) | **Vary with tire. |
| Note (3) | Dimensions listed are for a 930M Ag Handler configured with General Purpose 2.3 m³ (3.0 yd³) Fusion bucket, bolt-on cutting edges, heavy counterweights, 80 kg (176 lb) operator, and Michelin 20.5 R25 XHA2 tires. |
| Operating Weight | 31125lb |
| Rack Angle at Carry | 43° |
| Rack Angle at Full Lift | 54° |
| Reach - Bucket at 45°* | 3.6ft |
| Turning Radius - Inside of Tires | 9.4ft |
| Turning Radius - Outside of Tires | 17.7ft |
| Turning Radius - Over Bucket | 19.5ft |
| Width - Bucket | 8.4ft |
| Width - Over Tires | 8.3ft |
| Width - Tread Center | 6.3ft |
| Articulation Angle | 40° |
|---|---|
| Carry Height - Bucket Pin | 1.9ft |
| Clearance - Bucket at 45°* | 10.7ft |
| Clearance - Level Bucket** | 13.4ft |
| Clearance - Load over Height** | 11.6ft |
| Departure Angle | 33° |
| Dig Depth** | 5.3in |
| Dump Angle at Full Lift | 48° |
| Height - Bucket Pin** | 14.4ft |
| Height - Ground Clearance** | 1.3ft |
| Height - Ground to Axle Center** | 2.25ft |
| Height - Ground to Beacon** | 12.2ft |
| Height - Ground to Cab** | 10.9ft |
| Height - Overall** | 18.7ft |
| Length - Hitch to Front Axle | 4.9ft |
| Length - Overall* | 27ft |
| Length - Rear Axle to Bumper | 6.5ft |
| Length - Wheel Base | 9.8ft |
| Note (1) | *Vary with bucket. |
| Note (2) | **Vary with tire. |
| Note (3) | Dimensions listed are for a 930M Ag Handler configured with General Purpose 2.3 m³ (3.0 yd³) Fusion bucket, bolt-on cutting edges, heavy counterweights, 80 kg (176 lb) operator, and Michelin 20.5 R25 XHA2 tires. |
| Operating Weight | 31441lb |
| Rack Angle at Carry | 47° |
| Rack Angle at Full Lift | 51° |
| Reach - Bucket at 45°* | 4.4ft |
| Turning Radius - Inside of Tires | 9.4ft |
| Turning Radius - Outside of Tires | 17.7ft |
| Turning Radius - Over Bucket | 20.6ft |
| Width - Bucket | 8.4ft |
| Width - Over Tires | 8.3ft |
| Width - Tread Center | 6.3ft |
| Recyclability | 94% |
|---|
| Maximum Flow - Steering Pump | 34gal/min |
|---|---|
| Maximum Working Pressure - Steering Pump | 3500psi |
| Note (1) | Steering system uses a dedicated load sensing variable displacement pump with dual double acting cylinders. |
| Note (2) | Flow values listed are for a machine running in Performance Power Mode (1,800 rpm). |
| Number of Steering Wheel Turns - Full Left to Full Right or Full Right to Full Left | 3.5turns |
| Steering Articulation Angle - Each Direction | 40° |
| Steering Cycle Times - Full Left to Full Right - Maximum RPM: 90 rpm Steering Wheel Speed | 2.4s |
| Steering Cycle Times - Full Left to Full Right - Minimum RPM: Pump Flow Limited | 2.8s |
| Steering Cylinder, Double Acting - Bore Diameter | 2.8in |
| Steering Cylinder, Double Acting - Rod Diameter | 1.6in |
| Steering Cylinder, Double Acting - Stroke | 17.2in |
| Axles - Front | 6.9gal (US) |
|---|---|
| Axles - Rear | 6.6gal (US) |
| Cooling System | 7.9gal (US) |
| Diesel Exhaust Fluid (DEF) Tank | 5gal (US) |
| Engine Crankcase | 5.3gal (US) |
| Fuel Tank | 51.5gal (US) |
| Hydraulic System - Including Tank | 43.6gal (US) |
| Hydraulic Tank | 23.8gal (US) |
| Transmission - Gear Box | 2.2gal (US) |
| Full Turn Tip Load | 19424lb |
|---|
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.9 kg of refrigerant which has a CO2 equivalent of 2.717 metric tonnes. |
|---|
| Front | Fixed; Locking differential (standard) |
|---|---|
| Rear | Oscillating ±11 degrees; Open differential (standard); Limited slip differential (optional) |
