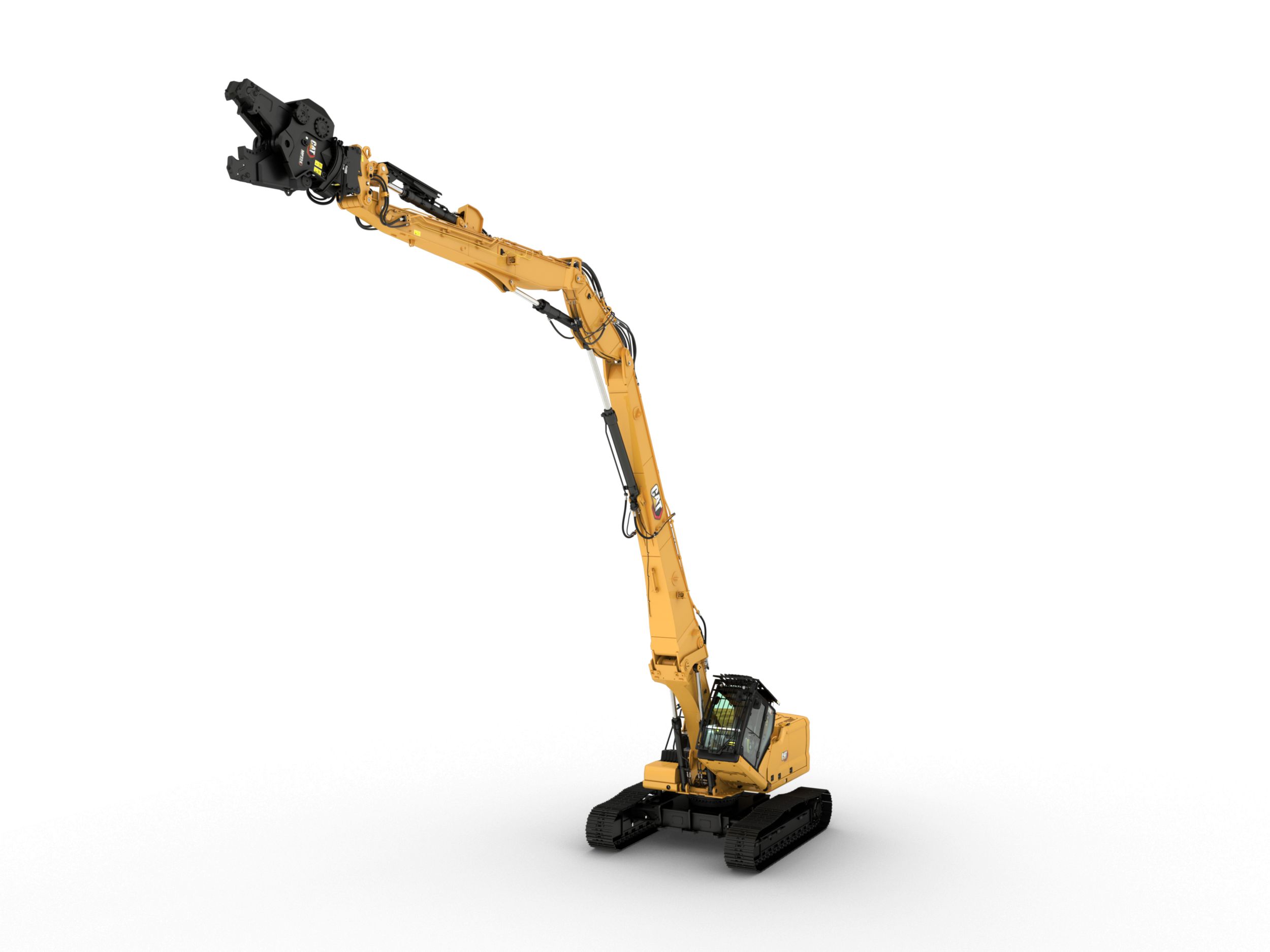

| 2-Piece Retrofit Boom In Cradle - R3.2CB2 Stick | 14810lb |
|---|---|
| Machine Weight - Retrofit Configuration | 96800lb |
| Note (1) | Hydraulic Variable Gauge undercarriage, 20 m (65'7") UHD C front, 600 mm (24") triple grouser shoes, and 8.8 mt (19,400 lb) counterweight. |
| Note (2) | Hydraulic Variable Gauge Undercarriage, R3.2CB2 (10'6") retrofit boom front, 1.76 m³ HD (2.30 yd³) bucket, 600 mm (24") triple grouser shoes, and 8.8 mt (19,400 lb) counterweight. |
| Operating Weight | 101400lb |
| Retrofit Boom in Cradle - R3.2CB2 Stick | 10530lb |
| UHD in Cradle | 18050lb |
| Maximum Height at Stick Nose in Max Reach Position | 38.6ft |
|---|---|
| Maximum Pin Height at Stick Nose | 66.8ft |
| Maximum Reach at Stick Nose | 43.7ft |
| Maximum Weight at Stick Nose | 7300lb |
| Maximum Working Pin Height at Stick Nose - 1/2 | 57.6ft |
| Maximum Working Reach at Stick Nose - 1/2 | 35.4ft |
| Note (1) | 20 m (65'7") UHD Front (Over-the-Front) |
| Biodiesel Capability | Up to B20¹ |
|---|---|
| Bore | 4in |
| Displacement | 428in³ |
| Emissions | Meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards. |
| Engine Model | Cat C7.1 |
| Engine Power - ISO 14396 | 275hp |
| Engine Power - ISO 14396 (DIN) | 279hp (metric) |
| Net Power - ISO 9249 | 273hp |
| Net Power - ISO 9249 (DIN) | 277hp (metric) |
| Note (1) | Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 2,200 rpm. Advertised power is tested per the specified standard in effect at the time |
| Note (2) | ¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO |
| Stroke | 5in |
| Main System - Maximum Flow | 560 l/min (148 gal/min) |
|---|---|
| Maximum Pressure - Equipment | 5076psi |
| Maximum Pressure - Equipment - Lift Mode | 5511psi |
| Maximum Pressure - Swing | 4322psi |
| Maximum Pressure - Travel | 5076psi |
| Swing Speed | 4.09r/min |
|---|
| Maximum Swing Torque | 81130lbf·ft |
|---|---|
| Swing Speed | 9.63r/min |
| Cooling System | 6.6gal (US) |
|---|---|
| DEF Tank | 10.8gal (US) |
| Engine Oil | 25gal (US) |
| Final Drive - Each | 1.7gal (US) |
| Fuel Tank Capacity | 125.2gal (US) |
| Hydraulic System - Including Tank | 81.9gal (US) |
| Hydraulic Tank | 38.8gal (US) |
| Swing Drive | 2.8gal (US) |
| Cab Height - With OPG | 11.3ft |
|---|---|
| Counterweight Clearance | 4.2ft |
| Ground Clearance | 1.5ft |
| Machine Length - without Front and Counterweight | 6.8ft |
| Machine Length - without Front, with Counterweight | 28.3ft |
| Note (1) | 20 m (65'7") UHD Front |
| Note (2) | 600 mm (24") Track Shoes |
| Shipping Gauge - Retracted Position | 7.8ft |
| Shipping Height - Top of Cab | 10.6ft |
| Shipping Length | 46.2ft |
| Tail Swing Radius | 10.3ft |
| Track Length | 16.5ft |
| Track Length to Center of Rollers | 13.3ft |
| Track Width - Extended | 11.3ft |
| Track Width - Retracted | 11.7ft |
| Transport Width | 8.2ft |
| Working Gauge - Extended Position | 9.3ft |
| Bucket | HD 1.76 m³ (2.30 yd³) |
|---|---|
| Bucket Digging Force - ISO | 40280lbf |
| Maximum Digging Depth | 18.5ft |
| Maximum Height at Stick Nose in Max Reach Position | 6.7ft |
| Maximum Loading Height | 30.6ft |
| Maximum Pin Height at Stick Nose | 36ft |
| Maximum Reach - Ground Level | 37.7ft |
| Maximum Reach at Stick Nose | 32.8ft |
| Maximum Weight at Stick Nose | 8400lb |
| Minimum Loading Height | 12.7ft |
| Note 1 | 6.8 m (22'4") Straight - R3.2CB2 (10'6") Stick (Over-the-Front) - HVG Undercarriage |
| Stick Digging Force - ISO | 28410lbf |
| Bucket | HD 1.76 m³ (2.30 yd³) |
|---|---|
| Bucket Digging Force - ISO | 40280lbf |
| Maximum Cutting Height | 32.8ft |
| Maximum Digging Depth | 22.1ft |
| Maximum Loading Height | 23ft |
| Maximum Reach - Ground Level | 35.1ft |
| Minimum Loading Height | 8.5ft |
| Note 1 | Bent - R3.2CB2 (10'6") Stick - HVG Undercarriage |
| Stick Digging Force - ISO | 28410lbf |
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.0 kg (2.2 lb) of refrigerant which has a CO2 equivalent of 1.430 metric tonnes (1.576 tons). |
|---|
