FirstCall Medical Gas Alarm Panels	Image	Hoja de especificaciones	Manual	Folleto

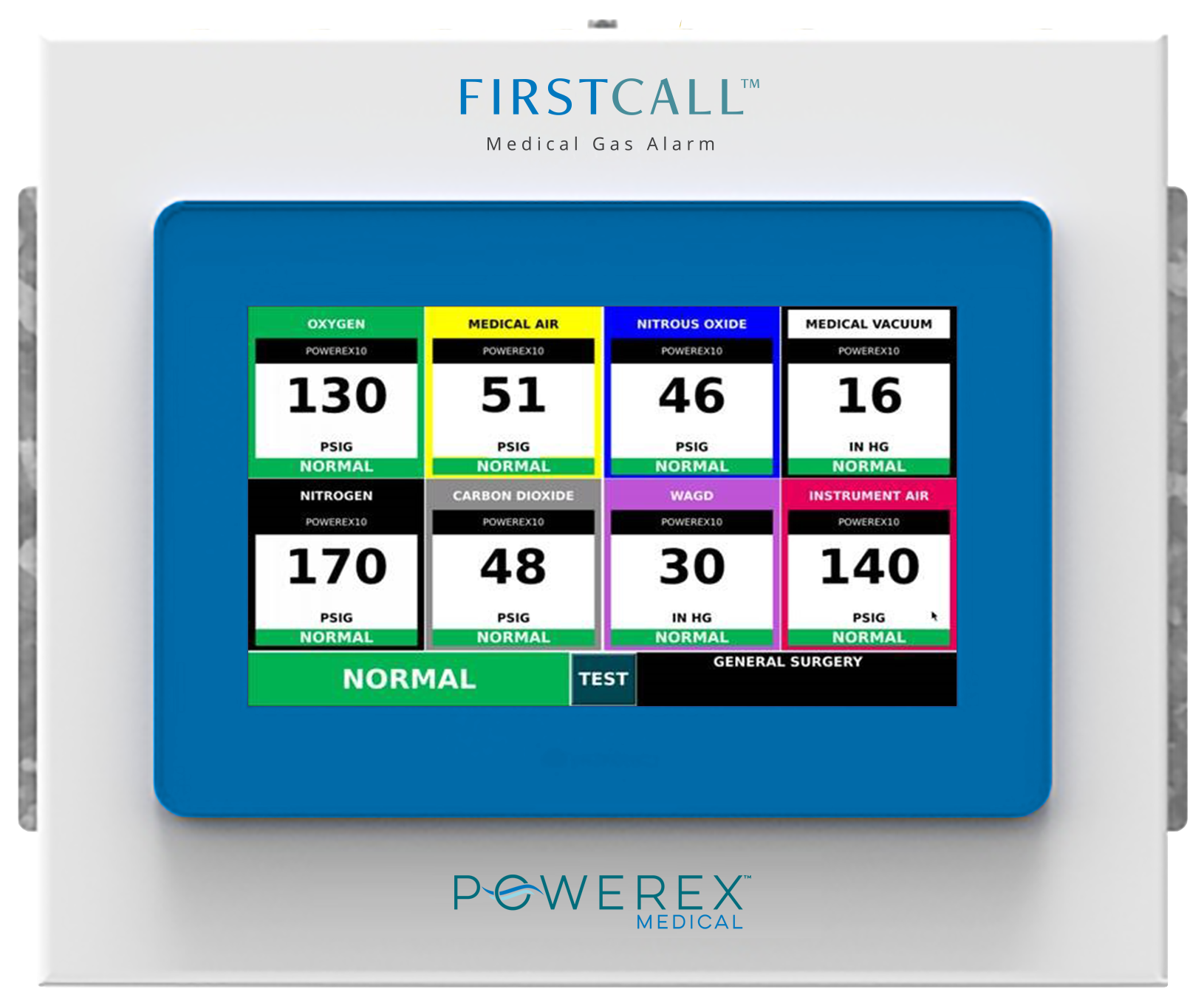

Area Alarm Panel
Master Alarm Panel
Combination Alarm Panel

Medical Gas Alarm Panel Retrofits	Image	Hoja de especificaciones	Manual
Area Alarm Panel Retrofit
Master Alarm Panel Retrofit
Combination Alarm Panel Retrofit

Construido por Powerex en Harrison, OH
5 años de garantía en piezas, 2 años de garantía en mano de obra
10” high-resolution touchscreen HMI with 7” VE option available
Area alarm up to 8 gases
- 4-20mA signal transducers, DISS demand-check fittings, and gas risers included with Area Alarm
Transducers are able to be remotely installed up to 5,000 ft away
Master alarm 23, 39, and 55 input signals
Combination alarm up to 6 gases, 23, 39, or 55 input signals
Ethernet connectivity using BACnet over IP protocol to building management system – available
Alarm signal status can also be viewed on a standard computer connected to the facility’s local network via Ethernet
Customizable emergency instructions in the event of an alarm
Easy to use interface for setup and changing settings
Pre-programmed NFPA 99 gas labels and colors
Event history log accessible at the screen
Alarm test feature – able to use quickly without logging in
Area alarm automatically sets NFPA 99 +/-20% limits based on current pressure
Master alarm pre-programmed NFPA 99 source alarm signals – also customizable
Master alarm signals organized under main source badge – click through for individual alarm information
Push-in terminal blocks to easily connect transducer and source equipment alarm signals
Factory set for normally closed signals, able to change to normally open
Transducers are gas-specific, and cross-connecting a transducer with an assigned gas input will generate an alarm per 2018 NFPA 99
Hinged frame for easy assembly and maintenance
Option for digital outputs – contact factory

Powerex FirstCall™ medical gas alarm retrofit kits are designed to upgrade or retrofit existing panels by replacing all necessary major components and reutilizing the existing back box. Powerex FirstCall™ medical gas alarm retrofit is compatible with the following alarm panels:

Amico Alert-2 (3 through 7 gang back box only)
Amico Compact Alert-2 (3 through 7 gang back box only)
Amico Alert-3
Amico Alert-4
Beacon Medaes MEGA 2
Beacon Medaes MEGA 3
Beacon Medaes TotalAlert Infinity
Ohio/Ohmeda/Medaes “Black Front”*
Hill-Rom/Beacon “Tan Front”* **
Chemetron Series 74 Impact Alarm System
Chemetron Digi I
Chemetron Digi II
Tri-Tech Medical DU/DC***
Tri-Tech Medical Med Touch***

*The Ohio/Ohmeda/Medaes Multi Module Line Pressure Alarm and the Hill-Rom/Beacon Area Line Pressure Alarm both require Hansen fittings for the transducers, so this must be indicated at the end of the part number with “-BTF.”
**The Hill-Rom/Beacon “Tan Front” 5 and 6 gas Area Alarms require a unique component layout, so this must be indicated at the end of the part number with “-TF56.”
***The Tri-Tech Medical DU/DC Series Combo and Master Alarms and Med Touch series Master Alarms greater than 24 signals require a unique component layout, so this must be indicated at the end of the part number with “-TTM”
