Laboratory Scroll Open Systems

Volver

Our laboratory air compressor systems feature our proven oil-less scroll technology in a open configuration for each maintenance access. These systems are great for applications in the research field, especially our multiplex systems with built in redundancy capabilities.

Ventajas y características

  • Oil-less scroll pump technology
  • Low maintenance and easily serviceable
  • Best-in-class footprint
  • Fabricado en instalaciones con certificación ISO 9001:2015

Solicitar un presupuesto
ModeloHPSCFM @ 145 PSIG/*100 PSIGDepósito (gal)dB(A) NivelFLA @ 208V, 3PHFLA @ 230V, 3PHFLA @ 460V, 3PHHoja de especificacionesFolleto
Duplex System
LSD02A32 (2)9.2807013.912.87.4
LSD03A33 (2)14.2807519.11749.7
LSD05A3 5 (2)2580753027.414.7
LSD07547.5 (2)46.2*1207440.436.619.3
LSD10A410 (2)50120775852.827.3
LSD10A510 (2) 50200775852.827.3
LSD10B410 (2)62.4*1207655.050.026.0
LSD15A5 15 (2) 75200788678.240
LSD15A615 (2)75240788678.240
LSD15B5 15 (2)92.4*2007740.436.619.3
LSD20B520 (2)124.8*2007955.050.026.0
Duplex Systems Expandable
LSD05A3-EX3 5 (2)25 (37.5)80764440.121
LSD10A5-EX3 10 (2)50 (75)200788678.240
LSD10A5-EX4 10 (2)50 (100)20080114103.652.6
Sistemas Triplex
LST07557.569.3*2007759.653.928.0
LST10A510 (3)75200788678.240
LST10B5 1093.6*2007981.574.038.0

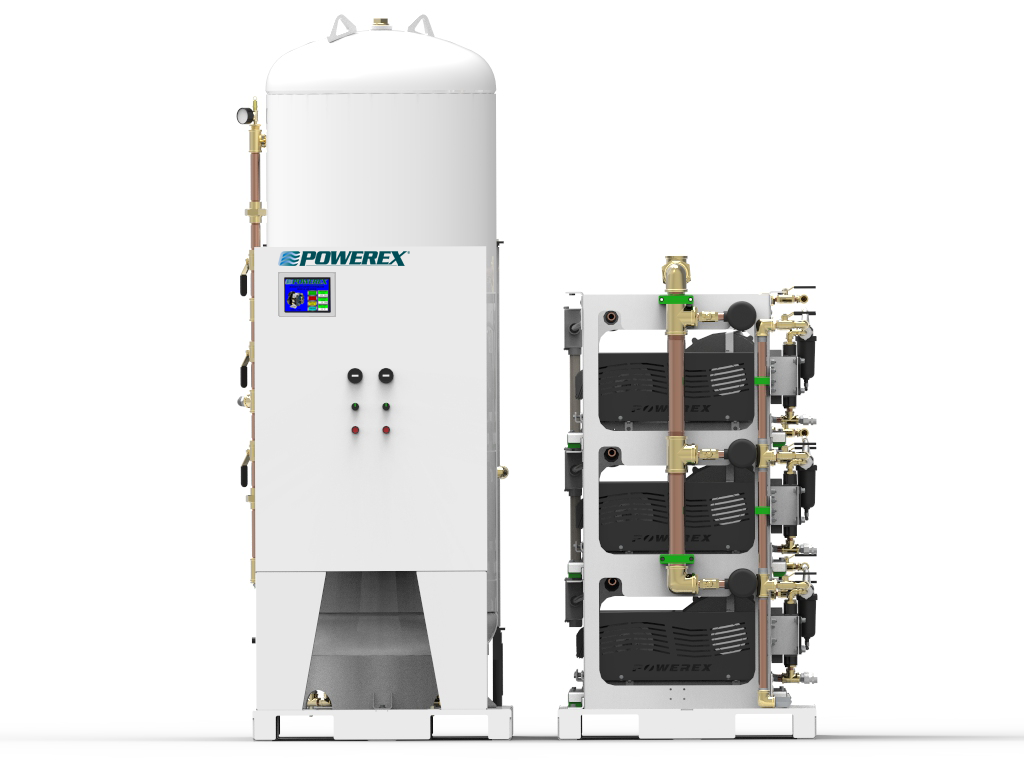

LST15A515 (3)112.520080128116.359
LST15A6 15 (3)112.524080128116.359
Sistemas Quadplex
LSQ05A45 (4)50120775852.827.3
LSQ07557.5 (4) 92.4* 20079797137
LSQ10A5 10 (4)10020080114103.652.6
LSQ10B510 (4)124.8*200831089850
LSQ15A5 15 (4)15020082170154.478
LSQ15A615 (4)15024082170154.478
Pentaplex Systems
LSP15A515 (5)187.520083212192.597
LSP15A615 (5)187.524083212192.597
Hexaplex Systems
LSH05A45 (6)75120788678.240
LSH15A515 (6)22520084254230.6115.9
LSH15A615 (6)22524084254230.6115.9
Octoplex
LSO05A55 (8)10020080114103.652.6

Oil-less Scroll Pump Technology

Nuestra innovadora tecnología scroll es totalmente exenta de aceite, extremadamente silenciosa y energéticamente eficiente. La bomba scroll tiene pocas piezas móviles, lo que la hace fiable y más fácil de mantener. Los sellos de punta autolubricantes y la ausencia de caja de engranajes hacen que la bomba sea realmente 100% exenta de aceite. Como líderes en tecnología de bombas scroll, nuestro último diseño incorpora varias características innovadoras:

  • Los cojinetes principales se alojan en hierro fundido duradero en lugar de aluminio, lo que evita el desgaste y el fallo prematuro de la pista del cojinete. Esta bomba puede funcionar al 100% de su capacidad con total confianza.
  • La función patentada de reengrase de cojinetes se ha mejorado para permitir el mantenimiento desde la parte frontal de la bomba, reduciendo el tiempo de servicio a la mitad.
  • The patented tip seal design yields the highest flow rates and longevity of any other dry scroll compressor.
  • La mejora de la eficiencia y la refrigeración se traduce en temperaturas de funcionamiento más bajas.
  • Extremely low vibration.
  • Industry first 10hp scroll pump improves system efficiency by producing more output using fewer pumps.

Best-in-class Footprint

Our newly redesigned and upgraded space-saving open scroll compressors feature the smallest available footprint on the market, allowing for flexibility of hospital design and ease of installation.

  • Up to 39% less footprint than leading competitor
  • Systems designed to fit through 36” door

Easily Serviceable

Our compressors are low maintenance, energy efficient, and easily serviceable.

  • Patented Service Slide
  • Common service items easily accessible
  • Basemount extends 20” from rack

System Features

  • ASME receiver
  • UL508A control panel
  • New patent-pending hybrid cooling method on heat exchanger for approach temperatures of 16°F
  • All interconnecting piping and wiring
  • Vibration isolation pads and flex connectors
  • Built in redundancy in multiplex systems
  • Manufactured in ISO 9001:2015 UL certified facilities
Standard Premium Control Panel
  • PLC controller and 6″ color HMI (Human Machine Interface) touch screen displays the operating status of the unit
  • UL508A listed and labeled, NEMA 4/12 enclosure
  • Visual and audible alarms for:
    • System overload trip
    • High temperature conditions
    • Service intervals
    • High dew point and CO levels
  • Panel door includes:
    • Visual and audible alarms
    • HOA switch for each pump
    • 3-position dryer switch
  • Integrated dew point and carbon monoxide monitors
  • Building automation gateway with BacNet® protocol
  • Email notifications for alarms and service alerts
