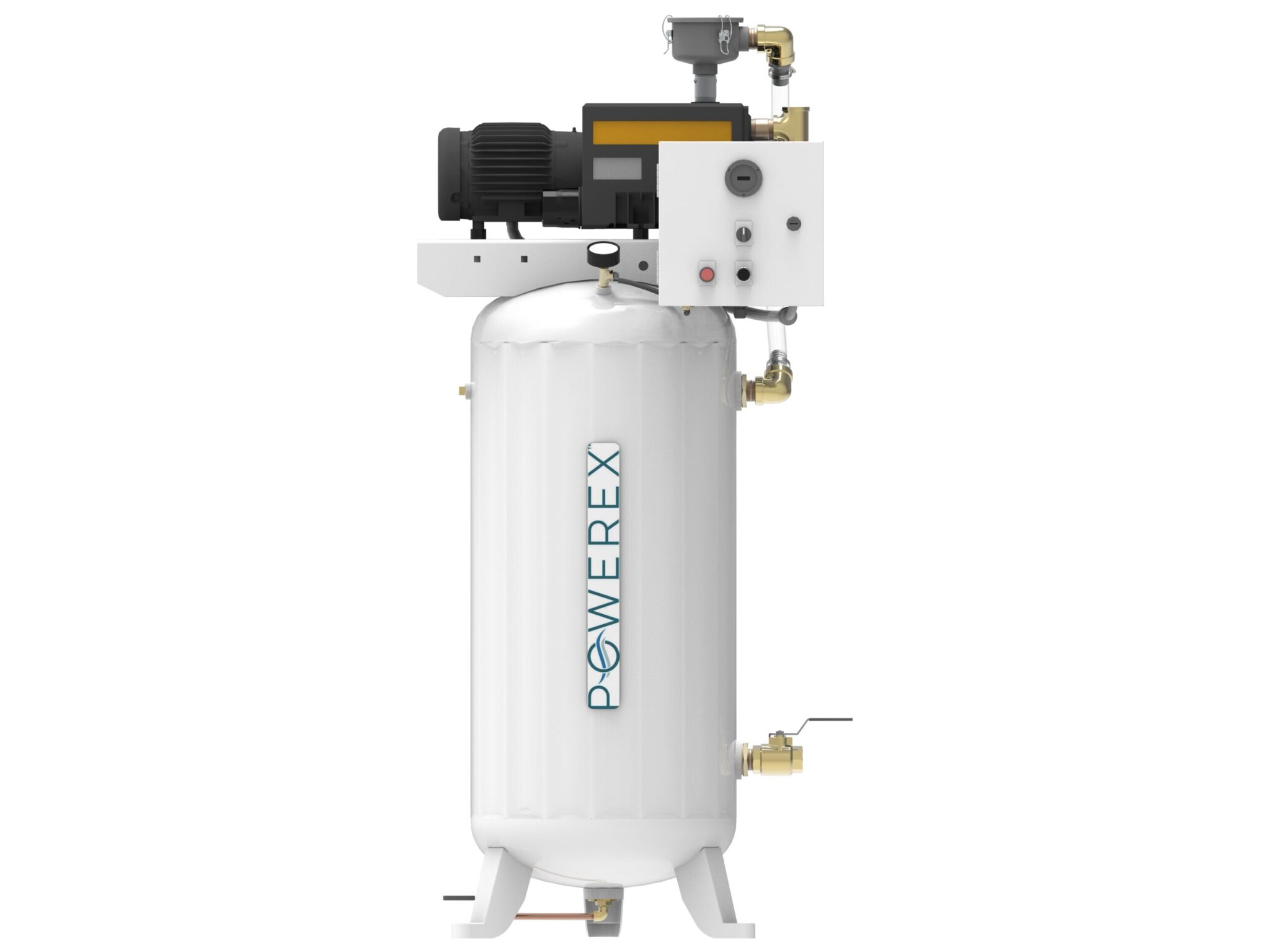

Industrial Vacuum Tankmount Systems

Volver

Our industrial vacuum tank mount systems feature a lubricated rotary vane pump, one of the simplest and most reliable pump types available. The use of oil in the pump produces higher efficiencies, lower operating temperatures, and lower sound levels. These pumps are also the most suitable to high ambient temperatures, which makes them ideal for manufacturing or process applications where environmental temperatures tend to be higher. (Consult factory for applications where ambient temperatures are above 104°F.) These pumps also have the lowest initial cost and high ultimate vacuum levels (29.3″ Hg end vacuum). By tank mounting the pumps on an ASME air receiver and adding a UL listed NEMA 1 control panel, Powerex has designed systems that are perfect for manufacturing processes like material handling, packing, food processing, and printing.

Ventajas y características

  • 29.3” Hg End Vacuum
  • Integrated Coalescing Filter
  • High Temp Alarm Standard
  • ASME Air Receivers
  • UL-listed NEMA 1 Control Panel
  • Low annual maintenance cost
  • Easy installation
  • Low operating temperatures
  • Fabricado en instalaciones con certificación ISO 9001:2015

Solicitar un presupuesto
ModeloSistema HPBomba HPSCFM @ 19" HgDepósito (gal)dB(A) NivelFLA @ 208VFLA @ 230VFLA@ 460VHoja de especificacionesFolleto
Simplex System
IBVS01511.51.5630637.374.5
IBVS01521.51.5660637.374.5
IBVS0202 221160665.98.25.1
IBVS03033316806611.110.46.2
IBVS0403 5524806818.216.29.1
IBVS05035537807218.216.29.1
IBVS07547.57.547120802623.212.6
IBVS10041010771208133.229.815.9
IBVS10051010772008133.229.815.9
IBVS150615151112407942.440.821.4
IBVS2006202013724079565428
IBVS2506252516824079706433
Sistemas dúplex
IBVD015331.5 (2)12806612.6127
IBVD020342 (2)2280699.814.48.2
IBVD030363 (2)32806920.218.810.4
IBVD030462 (2)321206920.218.810.4
IBVD0404105 (2)481207134.430.416.2
IBVD0504105 (2)741207534.430/416.2
IBVD05051-5 (2)742007534.430.416.2
IBVD0755157.5 (2)94200835044.423.2
IBVD10052010 (2)1542008464.457.629.8
IBVD10062010 (2)1542408464.457.629.8

System Features

Características estándar
  • UL508A Control Panel
  • High Temp Alarm
  • Drip Leg
  • ASME Receiver
  • NEMA 1 Control Panel
Optional Features
  • NEMA 4 Control Panel
  • Autopurge with NEMA 4 Panel
  • Lined Tanks
  • Exhaust Flex Houses (Accessory)

Options for All Models

  • Premium warranty
  • Vacuum regulator
  • Carbon filters
  • Lined tanks
  • NEMA 4 Panels
  • Auto purge
  • Vacuum connection flex hoses

Aplicaciones

  • Food processing
  • Environmental
  • Gas generation
  • Pharmaceutical
  • Petrochemical
  • Laboratories
  • Instrumentación
  • Chemical processing
  • Fabricación
